Computing System

• Processor

  Intel Core i5-13400 (10-core 1.8 GHz, up to 4.6 GHz)

• Chipset

  Intel, NVIDIA

• System Memory

  2 x DDR5-4800 SODIMM Memory Slots (up to 64GB)

 Graphics

• Graphics Engine

  ZOTAC GAMING GeForce RTX 4060 8GB GDDR6 128-bit

• Video Output

  1 x HDMI 1.4 (up to 3840x2160@30Hz) (integrated)
  3 x DisplayPort 1.4a (up to 7680x4320@60Hz)
  1 x HDMI® Connector*
  *Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification
  Up to 4 Displays

 Storage

• Hard Drive

  1 x 2.5“ SATAIII HDD/SSD bay

• Mass Storage

  N/A

• Optical Drive

  N/A

• mSATA

  N/A

• M.2

  1 x M.2 PCIe 4.0 x4 NVMe / SATA SSD slot (2242/2280) , 1 x M.2 PCIe 4.0 x4 NVMe SSD slot (2242/2280/22110)

• Card Reader

  3-in-1 (UHS-II SD/SDHC/SDXC)

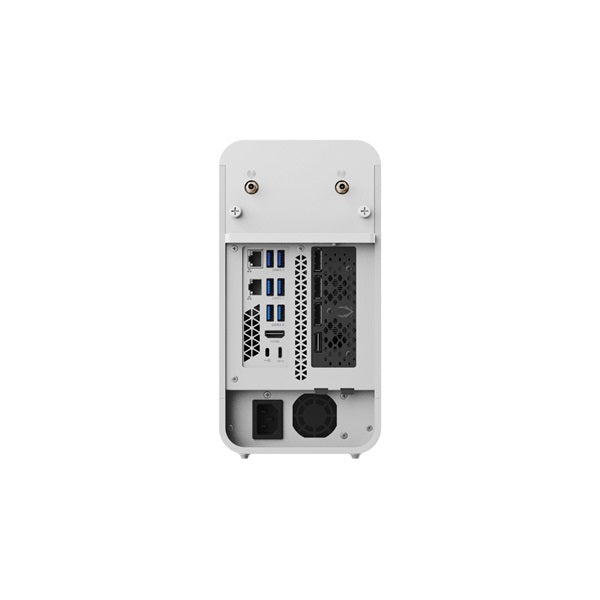

 I/O Ports

• Audio

  Microphone Headphone Combo Jack, 8ch via HDMI

• USB Port

  4 x USB 3.1
  4 x USB 3.0 (1 Type-C)

• LAN

  Dual LAN (Gigabit Ethernet, 2.5Gbps Ethernet)

• Antenna

  Dual WiFI SMA connetor

• Wifi

  WiFi 6

• Bluetooth

  Bluetooth 5.2

• Legacy I/O

  N/A

• CIR Infrared Port

  N/A

• Thunderbolt

  1 x Thunderbolt 4

• USB

  N/A

• IDE

  N/A

• VGA

  N/A

 Mechanical

• Kensington Lock

  Yes

• LED Indicators

  Power, HDD, WiFi

• Power Supply

  500W 80+ Platinum

• Cooling system

  Fan + Heatsink

• ZBOX Dimensions

  265.5mm x 126mm x 249mm (10.45in x 4.96in x 9.8in)

• Case Mounting

  None

 Miscellaneous

• Supported OS

  Windows 11 ready

• Accessories

  2 x WiFi antenna
  Power Cord (bundled cable type dependent on region)
  USB Flash drive with drivers
  Warranty Card
  Quick Start Guide
