Dimension

163.5 x 116.8 x 28.5 mm

0.54 L

Motherboard Size

154 x 110 mm

CPU

Intel^® Processor N100

2.9G~3.4G Turbo, 4C/4T Core, 6MB L3 Cache

Memory

1 x SO-DIMM DDR4 slot

3200MHz

Max. 32GB

LAN

2.5GbE LAN (Realtek RTL8125)

Wifi Card

Intel AX101

Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz

Graphics

Intel^® UHD Graphics 750

Audio

Realtek ALC897

HDMI Resolution (Max.)

HDMI2.1

Support 4K@60P HDR10

Mini DP Resolution (Max.)

DP 1.4

support 4K@60P HBR2

Storage

1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)

1 x M.2 2280 slots for SSD (PCI-e x2)

Expansion Slots

1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)

1 x M.2 2280 slots for SSD (PCI-e x2)

1 x M.2 2230 slot (PCI-e x1 ; A-E key slot occupied by the Wi-Fi + Bluetooth card)

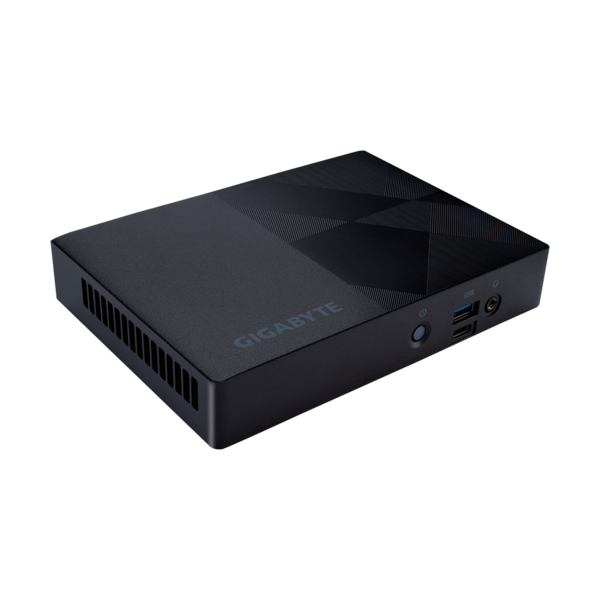

Front I/O

1 x Power Button

1 x USB3.2 Gen2 Type-A

1 x USB3.2 Gen2 Type-C

1 x Headphone / Microphone

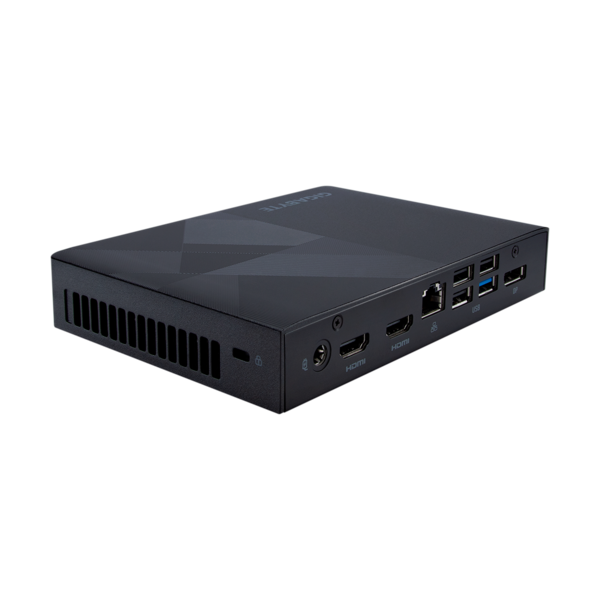

Rear I/O

2 x HDMI 2.1

1 x 2.5 GbE RJ45

3 x USB 2.0 Type-A

1 x USB 3.2 Gen2 Type-A

1 x DC-In

1 x DP 1.4

1 x Kensington lock slot

Power Supply

Input: AC 100-240V

Output: DC 19V/3.42A, 65W

VESA

VESA support

Supports 75 x 75 and 100 x 100 mm



Support OS

Win11 64bit

Environment

System Environment Operating Temperature: 0°C to +35°C

System Storage Temperature: -20°C to +60°C
